How to find the DB2 port and server name

Below is the most common method to check the DB2 port and server name in different environments.

To locate the server name and port number on Windows:

1. Open the DB2 Control Center on the remote Windows server.
2. Right-click one of the available instances for the local machine.
3. Click Setup Communications.
4. Click Properties. The port number is listed in the Properties window.

To locate the server name and port number in unix environments:

1. Open a command prompt.
2. Enter cd /usr/etc.
3. Enter cat services.
4. Scroll through the list of services until you find the connection port number for the database instance of the remote database. The instance name is usually listed as a comment. If it is not listed, complete the following steps to find the port:
   1. Open a DB2 command prompt.
   2. At the DB2 command prompt, verify that you are on the correct instance:get instance
   3. DB2 will report the current instance.
   4. Run the following command to find the service name for your instance:get dbm cfg | grep SVCE
      DB2 will report the service name. For example:TCP/IP Service name (SVCENAME) = db2cdb2inst24
   5. Use the service name to find the port number in the services file. For example, enter a command similar to this one:grep service_name /etc/services
      DB2 will return the information. For example:service_name 50012/tcp # Connection port for DB2 instance instance

IBM Websphere V8.5.5.2 Installation(with screen shots) using IBM Installation Manager

The Installation of Websphere V8.5.5.2 using the Installation Manager:

Hmmm..... The version of the websphere V8.5.5.2 sounds fishy right. but do not worry the V8.5.5.2 is not the complete version of websphere.

The Websphere version is V8.5 with a fixpack of 5 and an interim fix pack of 2 so the complete version is V8.5.5.2.

So lets start with the installation steps,

To install the websphere versions of 8.0 and above IBM has provided a software called as the IBM Installation Manager, this software is used for the installation of the Websphere V8.0 and above.

So first start with the installation of IBM installation manager V1.5.2:

Installation Manager Steps:

Firstly make sure you have all the permissions to install a software in the machine, then click on the installation Icon.

Now lets start with the installation of Websphere:

While downloading the websphere software make sure you download all the parts of the websphere installation, take care that you dont miss anything in it.

Like make one folder for Websphere V8.5 and one folder for V8.5 fixpack 5 and one for V8.5.5 interim fix pack 2.

After downloading and extracting all the parts of the installation software make a new folder and copy all the contents of the Websphere installation from all the parts of the websphere installation folders. Make sure that you dont overwrite any folders or files while doing so.

Now lets open the Installation Manager  and start the installation of websphere.

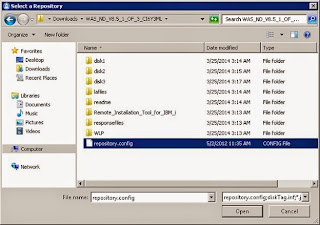

Before Installing, we need to add repository file. Click on file -> Preferences ->Add Repository.

Add Each repository (i.e) websphere V8.5 and then V8.5 fixpack 5 and V8.5.5 interim fixpack 2.

and while adding the repository make sure you select the config.repository file and then click OK.

After add the repository make sure you select each repository and then click test connection.

If it shows as failed then you have failed to copy all the parts to the folder or you have overwritten some files while copying.

so try to make sure you have all the files of each part in the same folder and make sure you dont change the folder names while copying.

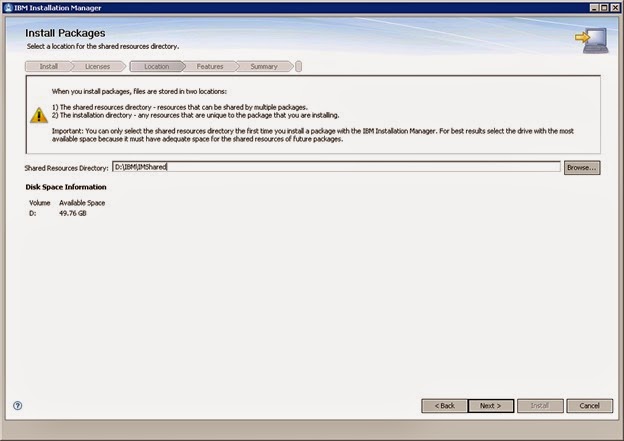

Now if test connection is successfull click on Install.

With this the Installation of the websphere is completed,

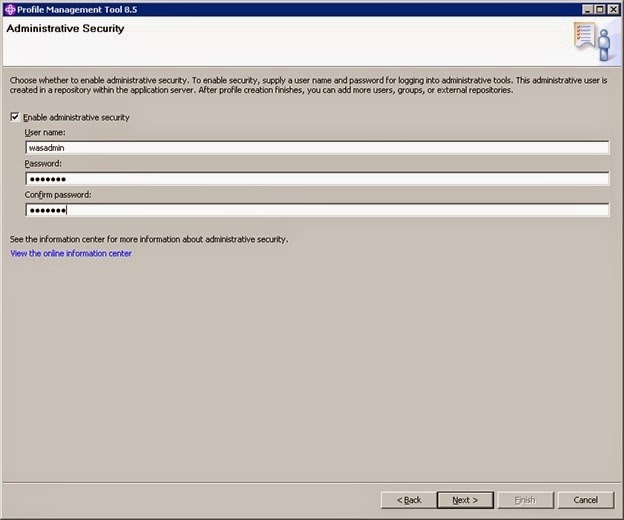

So go ahead and start the webshpere and try logging into the websphere console.

and in the home page it should look like the below.

ISIM 6.0 Installation (including prerequesities with screen shots) made easy

ISIM Installation with screen shots.

Prerequisites for ISIM 6.0 Installation:

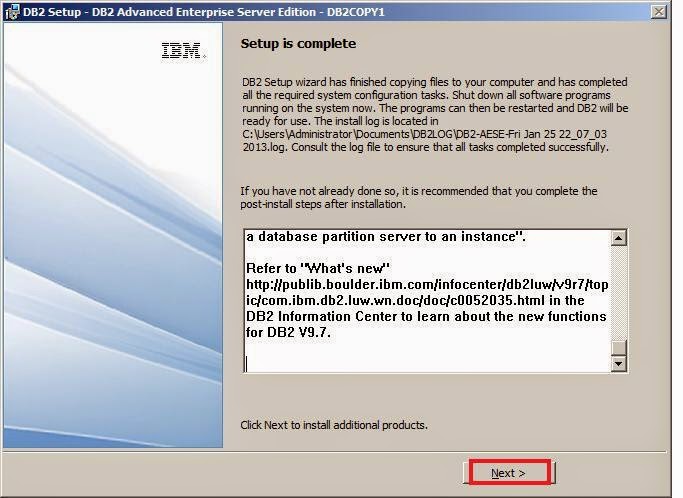

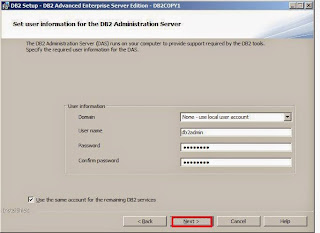

1. DB2 V9.7 with fix pack 4.

2. TDS V6.3 installation

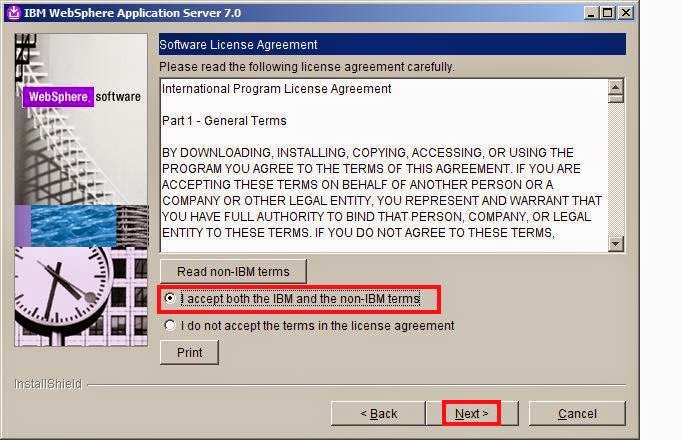

3. WebSphere installation (WAS V7.0 with fixpack 23):

4. ISIM Installation:
